Vessel Collision Defense Pneumatic Rubber Fender
Pneumatic Rubber fenders range in diameter from 500mm to 4,500mm and in length from 1000mm to 10,000mm, and can also be customized.
Description

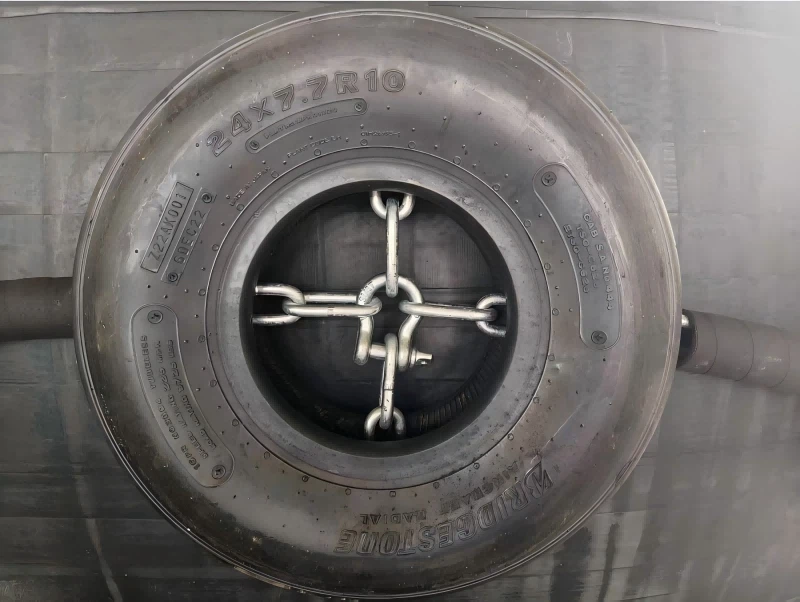

3m*6m Pneumatic fender with aircraft tire chain, segmented shackle
Description
| Main Material: | Natural Rubber | Certification | ISO17357 BV CCS ABS LR DVN SGS KR RINA |
|---|---|---|---|
| Warranty Period: | 12 Months | Design Using Life: | More Than 10 Years |
| Initial Pressure: | 50KPA;80KPA | Color: | Black,white,grey,Customized |
| Highlight: |
boat dock fenders,Yokohama pneumatic rubber fender,Pneumatic Rubber Marine Fender |
||
Specifications
Pneumatic rubber fender is a wear-resistant rubber fender filled with high-pressure air. It is easy to deflate, convenient to handle, and is designed to provide excellent protection for vessels and is cost-effective. . The fenders are available in two different pressure levels: 50Kpa and 80Kpa to meet the needs of different applications.
Inflatable fenders range in diameter from 500mm to 4,500mm, length from 1,000mm to 12,000mm, and special sizes are available.
All sizes are available in sling type or with heavy-duty chain and tire net.
When it comes to performance and reliability, the ISO 17357-compliant marine inflatable rubber fenders set the benchmark for excellence. Its proven durability, abrasion resistance and energy absorption make it a reliable choice for marine applications worldwide. Whether you're looking for a D 3.0M X L 6M inflatable fender or a Yokohama fender, this inflatable rubber fender offers superior quality and performance that meets the highest industry standards.
Advantages and Features of Yokohama Pneuamtic Marine Fenders
- Easy deployment
- Very low reaction force and hull pressure
- Applicable to small and large tidal ranges
- Maintains large clearance between hull and structure
- Economical solution Low Maintenance Cost
- Easy to deflate and can be used in different positions or stored on the ship deck
- Built to ISO 17357-1:2014 standard
Pneumatical Rubber Fender Dimensions and Performance Values
|
Size (Dia x L) |
Performance @ 60% compression |
|||||
|
mm |
Initial Pressure 50 KPA |
Initial Pressure 80 KPA |
||||
|
Energy Absorption (kN-m) |
Force Reaction (kN) |
Hull Pressure (kPa) |
Energy Absorption (kN-m) |
Force Reaction (kN) |
Hull Pressure (kPa) |
|
|
500 x 1000 |
6 |
64 |
132 |
8 |
85 |
174 |
|
600 x 1000 |
8 |
74 |
126 |
11 |
98 |
166 |
|
700 x 1500 |
17 |
137 |
135 |
24 |
180 |
177 |
|
1000 x 1500 |
32 |
182 |
122 |
45 |
239 |
160 |
|
1000 x 2000 |
45 |
257 |
132 |
63 |
338 |
174 |
|
1200 x 2000 |
63 |
297 |
126 |
88 |
390 |
166 |
|
1350 x 2500 |
102 |
427 |
130 |
142 |
561 |
170 |
|
1500 x 3000 |
153 |
579 |
132 |
214 |
761 |
174 |
|
1700 x 3000 |
191 |
639 |
128 |
267 |
840 |
168 |
|
2000 x 3500 |
308 |
876 |
128 |
430 |
1150 |
168 |
|
2500 x 4000 |
663 |
1381 |
137 |
925 |
1815 |
180 |
|
2500 x 5500 |
943 |
2019 |
148 |
1317 |
2653 |
195 |
|
3000 x 5000 |
1050 |
2030 |
135 |
1450 |
2580 |
185 |
|
3300 x 4500 |
1175 |
1884 |
130 |
1640 |
2467 |
171 |
|
3300 x 6500 |
1814 |
3015 |
146 |
2532 |
3961 |
191 |
|
4500 x 6500 |
3238 |
3796 |
145 |
4518 |
4998 |
195 |
|
4500 x 9000 |
4752 |
7984 |
154 |
6633 |
7551 |
202 |
FAQ
1. Who are we?
+
-
Qingdao Luhang Marine Airbag and Fender Co., Ltd. is the leading & professional manufacturer of marine equipment: marine airbags, marine fenders (yokohama pneumatic fenders, foam filled fenders and fixed rubbers fenders), marine buoys in China, which locates in Qingdao and has been specializing in producing ship air bags and all kinds of marine fenders since 1988.
2. What certifications does this product have?
+
-
This product is certified by BV,CCS,ABS,LR,DVN
3.What can you buy from us?
+
-
Pneumatic fender,Foam filled fender,Rubber airbag,Mooring buoy,
4. Why should you choose us
+
-
1. Luhang is the first specialised manufacturer of pneumatic rubber fenders with more than 30 years of development and production experience.
2.Trusted company producing pneumatic rubber fenders with optimised rubber materials, adequate sizes and sufficient number of layers.
3. ISO certified with several product patents
4. pneumatic rubber fenders have been inspected and certified by third parties such as CCS, BV, SGS, V-Trust, etc. for high energy absorption, low reaction force and air tightness.
