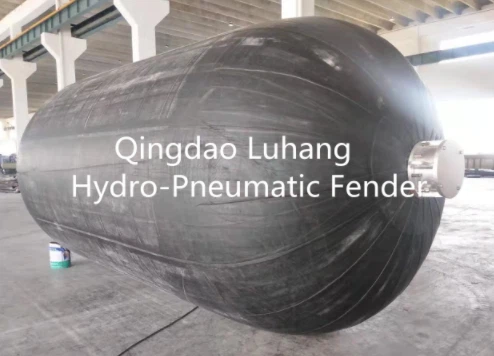

Submarine Pneumatic Fender

Luhang has supplied Yokohama type submarine pneumatic fenders to many navies around the world, including those of Australia, Brazil, Canada, Greece, Japan, the United Kingdom and the USA. The Yokohama submarine floating fender was launched in 1995 and since then has been extensively used by navies across the world.

Advantages of fenders over alternative, traditional berthing methods include:

• Cost effective replacement for deep water catamarans
• Easily moved to provide flexibility in berthing
• Easily transported to provide emergency berthing facilities
• Maintenance requirement almost non-existent
• Unaffected by extreme climatic conditions

Sumbmarine Pneumatic Fender Design and Structure

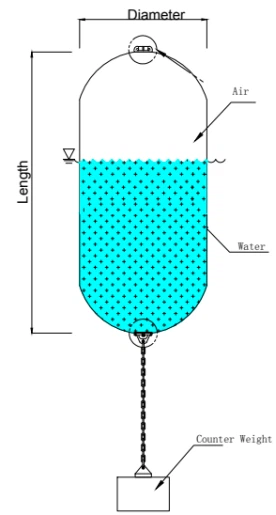

In order to provide full protection at surface and subsurface, our submarine pneuamtic fenders are deployed vertically. To maintain their position, the fenders are water ballasted and also have a counterweight attached to the bottom of the fender. The weight, shape and method of deployment of the counterweight can be adjusted to suit individual situations.

Submarine fenders are designed to offer higher bursting strength than a normal surface fender, with the minimum burst pressures being:

• 2000mm diameter and smaller = 4.9kgf/cm2
• 2500mm diameter and larger = 5.7kgf/cm2

To facilitate water charge and discharge, flange openings are sited at each end of the fender. In addition, submarine fenders are fitted with a safety valve to enable excess pressure to be released should over compression occur.

Submarine Pneumatic Rubber Fender is the same as the body of a normal pneumatic fender. The top end has a flange with an air valve and a water valve and ears for lifting and towing.



Features on Sumbamrine Pneumatic Fender

1. Submerged Contact Area

2. Low Hull Pressure

3. Adjustable Draft

4. Movable

5. Prevents Acoustic Tile Damage

Applications of Submarine Pneumatic Fender

1. Submarines

2. Some fast ferries

3. Semi-submersible rigs

Submarine Pneumatic Fenders Sizes and Performance Values



Fender Size		Water            (%)	Compression (%)	Initial Pressure 50kPa
Diameter D (mm)	Length L (mm)			Energy kNm	Force kN
2000	4000	60	45	99	385
		0	60	431	1177
2000	6000	65	45	155	599
		0	60	431	1177
2500	5500	65	45	223	687
		0	60	928	2037
3300	6500	60	45	616	1247
		0	60	1913	3169
